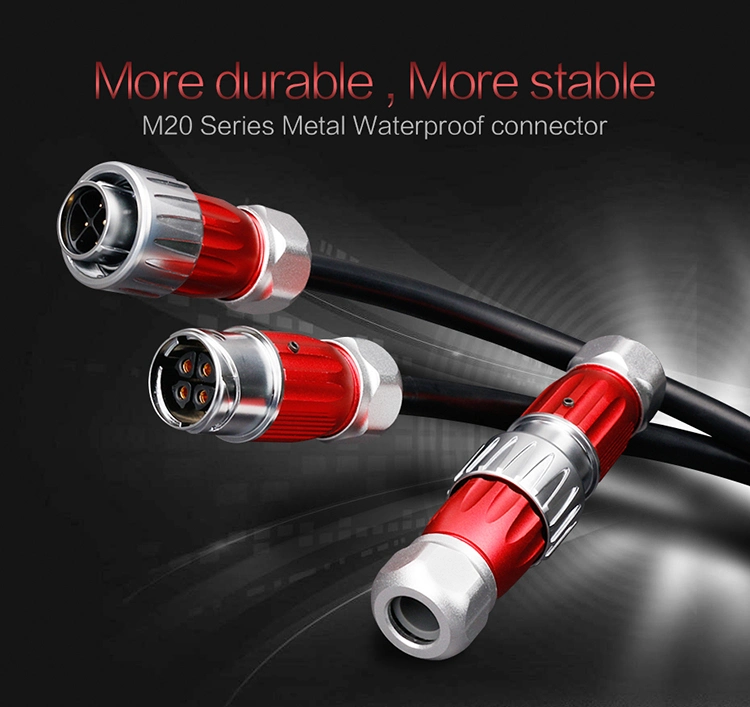

1. Use alloy external protective material to effectively reduce electromagnetic and signal RF interference generated by external high current.
2. Three-point spiral locking with military standard.
3. Optional shell color to meet different environmental requirements.

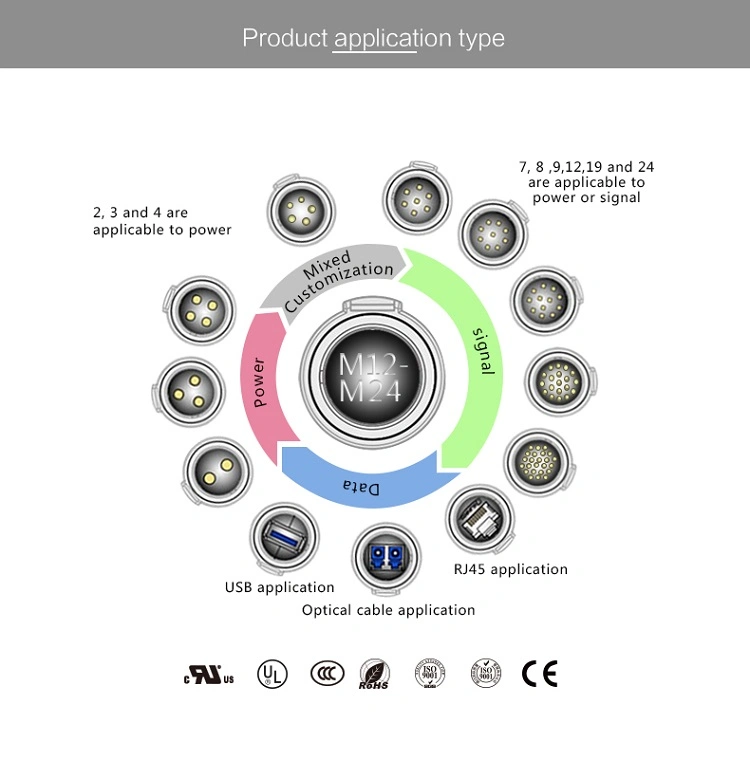

4. 2-7PIN power supply, 9-12PIN signal is optional.
5. Rated current: 5A/12A/20A rms.
6. The IP65/IP67 protection level is met when the product is connected.
|Connecting mode||1/4 bayonet connecting type|
|Cable specification||0.34mm2 ~ 0.75mm2 /26-24AWG|
|Diameter range||Φ5.0mm ~Φ6.5mm|
|Durability||≥500 mating&unmating cycles|
|Method of connecting cable||Solder|
|Prevent the combustion level||UL94-V0|
|Insulated parts||High performance engineering plastics|
|Hardware metal||Zinc alloy(pearl hard chromium)|
|Contact pin||Copper alloy(gold-plated)|
|Sealed against dust and fluid (IP65/IP67)|
|Vibration resistance,impact resistance,stretching resistance|
|socket with cover|
|Stage equipment - The smart grid|
|Medical equipment - Server|
|Solar energy equipment - Ship equipment|
|Electric power equipment - Vehicle equipment|
|Communications equipment - Heavy machinery|
Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available
5. Supply the best service to you with the contact details below:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.
(all in all: cable to cable; cable to machines)
Q2: What classes do connectors have?
|circular||high-frequency||for printed board; cabinets;|
|rectangular||low frequency||socket connectors; for audio equipment, power, signal, etc.|
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
